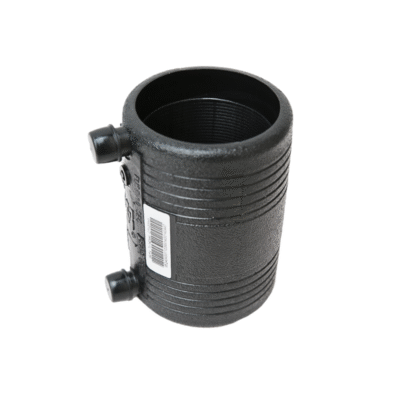

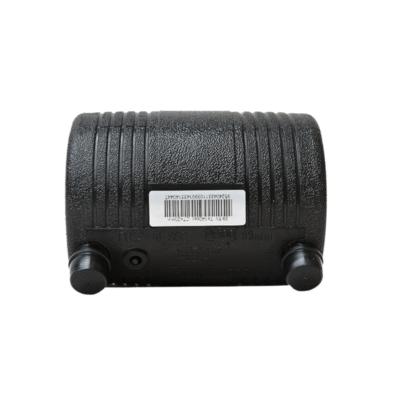

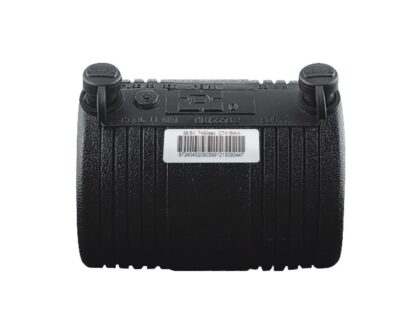

Electrofusion Coupler for Reliable Jointing of HDPE Pipes - China Hdpe Pipes Fittings Manufacturer and Supplier(Zhejiang Xinda Plastic Pipe Co., Ltd)

Key Features

PE100 virgin material for superior durability
Consistent and reliable fusion results with integrated heating wire
Compatible with SDR11 & SDR17 HDPE pipes
Excellent sealing performance for high-pressure applications
Corrosion-resistant and UV-stable
Suitable for potable water and natural gas systems
Light weight and easy to install
Available in multiple diameters for a wide range of pipelines

Applications

Electrofusion couplers are widely used in:

The Electrofusion Coupler is used to connect two HDPE pipes with a strong and durable fusion joint. Designed with integrated heating coils, it ensures uniform heat transfer, providing a leak-proof and long-lasting connection for water, gas, and industrial pipeline systems.

Installation Guide

Prepare the HDPE pipe by scraping and cleaning.
Insert the pipe ends into the coupler until reaching the central stop.
Connect the electrofusion terminals to the fusion machine.
Heat is applied to melt the internal wire and pipe surface.
After cooling, a solid and permanent joint is formed.
This method provides fast, secure and maintenance-free pipe connections.

Why Choose Xinda Plastic Pipe Co., Ltd Electrofusion Fitting Series

Over 24 years of HDPE fittings manufacturing experience.
Complete product lines:Electrofusion Fitting Series、PE/Steel Transition Fitting Series、Socket Joint Series、Butt Fusion Fitting Series.
High-precision copper wire embedding for consistent welding quality.
In-house QC lab ensures every fitting is inspected and batch-traced.
Comprehensive support for OEM and project supply.
Technical team provides fusion guidance and project support.

The Electrofusion Fitting Series is designed for connecting HDPE (High-Density Polyethylene) pipes through a reliable andleak-proof electrofusion process.
These fittings use embedded heating elements that, when energized, melt the HDPE surface and create a strong, homogeneous joint between pipes or other fittings.
Engineered for water, gas, and industrial piping systems, this series offers superior performance, easy installation, andlong-term durability — ensuring system integrity even under demanding operating conditions.
Using advanced electrofusion technology, it ensures a leak-free, long-lasting joint that meets international standards for safety and performance.Electrofusion of HDPE uses electrofusion fittings which have small copper wires coiled around the inside.
Electric current is then run through those wires using an electrofusion processor in turn melting the HDPE on the inside of the fitting and the outside of the pipe.
Electrofusion of HDPE uses electrofusion fittings which have small copper wires coiled around the inside. Electric current is then run through those wires using an electrofusion processor in turn melting the HDPE on the inside of the fitting and the outside of the pipe.

Packing Method	Carton
Trading Method	EXW, FOB, CFR, CIF, DDU
Payment Method	T/T, L/C at sight
Supply Ability	100000 Ton/Year
Certificate	ISO、CE、GB/EN12201、EN1555、KS
Production Lead Time	Depending on the order quantity.Normally about 2~3 weeks for 20′ GP, 3~4 Weeks for a 40′GP.

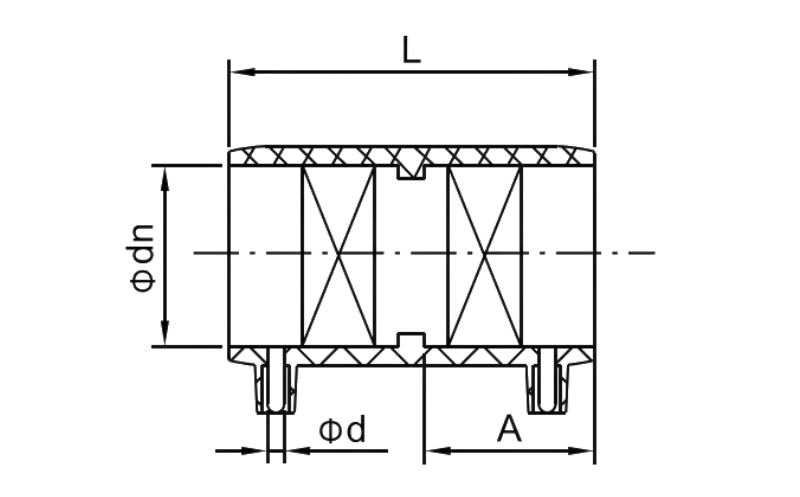

(Specifications)φdn	L	A	φd	ltem Number
20	85	40	4.7	XDI-20
25	90	43	4.7	XDI-25
32	90	43	4.7	XDI-32
40	97	47	4.7	XDI-40
50	105	50	4.7	XDI-50
63	112	54	4.7	XDI-63
75	134	64	4.7	XDI-75
90	130	63	4.7	XDI-90
110	149	73	4.7	XDI-110
125	169	83	4.7	XDI-125
140	170	83	4.7	XDI-140
160	180	88	4.7	XDI-160
180	210	103	4.7	XDI-180
200	208	100	4.7	XDI-200
225	219	107	4.7	XDI-225
250	219	107	4.7	XDI-250
280	226	109	4.7	XDI-280
315	228	112	4.7	XDI-315
355	267	130	4.7	XDI-355
400	314	152	4.7	XDI-400
450	328	160	4.7	XDl-450
500	370	180	4.7	XDI-500
560	405	202	4.7	XDI-560
630	425	212	4.7	XDI-630

Q1: What is an electrofusion coupler used for?
A1:It joins two HDPE pipes using controlled electrical heating.

Q2:.How to buy the product?
A2:Contact with us by email or by Trade Manager or wechate/whatsapp, and inform us all information what you want, or tell us what's kind of profducts you want? We will contact with you immediately, or we could recommend style to you.

Q3:Can you put your Design and logo on product?
A3:Yes, we have professional design service team, we can make any sample as your design, and also could put your logo on products.Moulds injection or leaser printing according your demand or your quantity.

Q4:What's the payment term?
A4:We can accept for L/C, T/T. Any other payment as your request.

Q5:Still have a lot of questions?
A5:Please feel free to contact with me as below name card,you can send email or add to your contacts and send me your question or inquiry ,welcome.
