Key Features

• Durable PE100 Material:Resistant to corrosion, impact and long-term outdoor use.
• Strong Fusion Bond:Embedded copper wire produces uniform heat, ensuring a leak-proof connection.
• Suitable for gas and potable water HDPE systems
• Integrated copper heating coils for consistent fusion
• Compatibility: Compatible with EN 1555 / EN 12201 HDPE pipes and most electrofusion control units in the market.

Applications

Electrofusion repair saddles are widely used in:

• Municipal water pipeline networks
• Gas distribution systems
• Industrial water and chemical systems
• Mining and slurry pipelines
• Agricultural irrigation projects
• Underground utility distribution

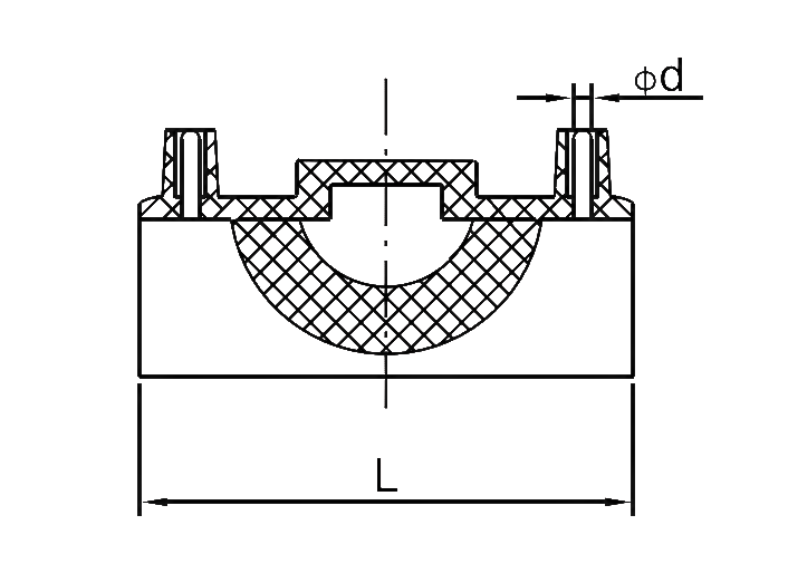

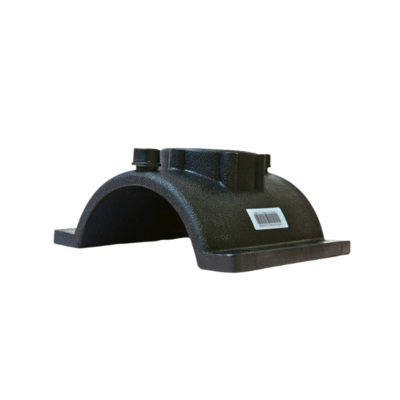

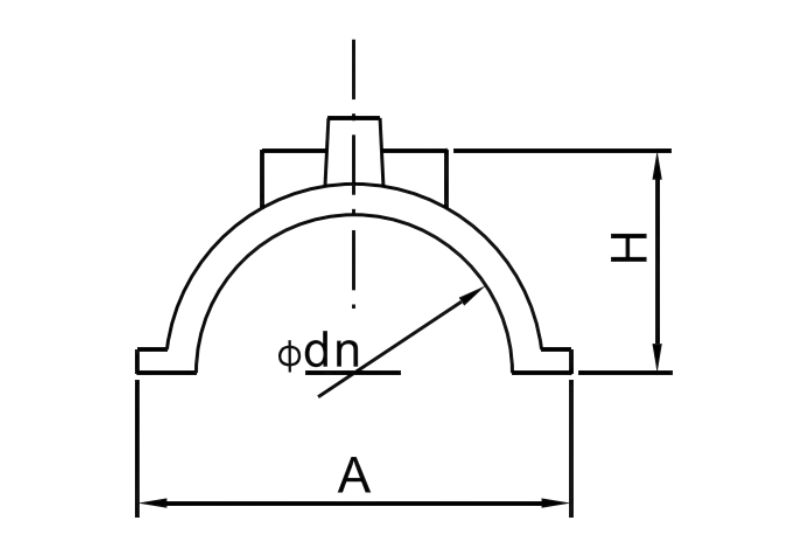

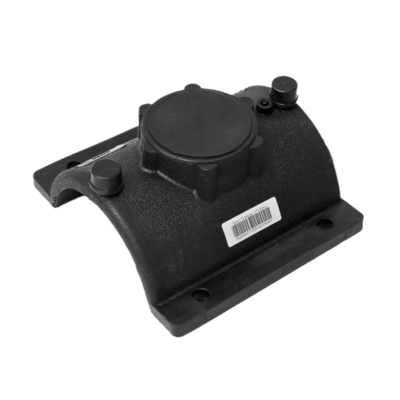

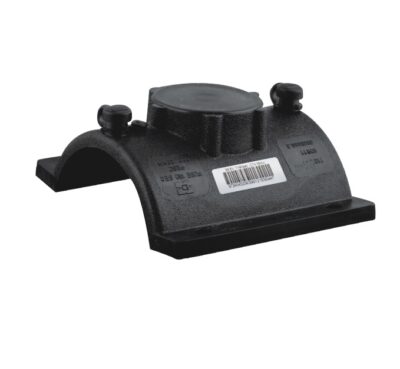

The Electrofusion Repair Saddle is designed for quick, safe and permanent repairs on damaged HDPE pipelines. It attaches directly to the pipe surface and forms a strong and reliable bond through controlled electrofusion. This type of repair saddle is commonly used in gas distribution, water supply networks, mining, and industrial pipeline maintenance.

Installation Guide

1. Clean & Prepare the Pipe Surface

• Mark the repair area.
• Use a rotary scraper to remove the oxidized layer.
• Clean the surface with approved PE wipes.

2. Position the Repair Saddle

• Place the saddle directly over the damaged pipe area.
• Ensure the fusion zone fully covers the defect.
• Secure it with alignment clamps to avoid movement.

3. Connect Fusion Terminals

• Attach the electrofusion machine leads to the saddle terminals.
• Scan or enter the fitting’s barcode parameters.

4. Start the Electrofusion Process

• Begin the fusion cycle.
• Do not move or disturb the pipe during heating.
• Watch fusion indicators (if included) for correct expansion.

5. Allow Full Cooling

• Keep clamps on until the recommended cooling time is complete.
• Do not pressure test, backfill, or stress the pipe before cooling.

6. Inspect & Test

• Check the weld visually.
• Perform a pressure test according to project standards.
• If no leaks or deformation, return the pipeline to service.

Why Choose Xinda Plastic Pipe Co., Ltd Electrofusion Fitting Series

• Over 24 years of HDPE fittings manufacturing experience.
• Complete product lines:Electrofusion Fitting Series、PE/Steel Transition Fitting Series、Socket Joint Series、Butt Fusion Fitting Series.
• High-precision copper wire embedding for consistent welding quality.
• In-house QC lab ensures every fitting is inspected and batch-traced.
• Comprehensive support for OEM and project supply.
• Technical team provides fusion guidance and project support.

• The Electrofusion Fitting Series is designed for connecting HDPE (High-Density Polyethylene) pipes through a reliable andleak-proof electrofusion process.
• These fittings use embedded heating elements that, when energized, melt the HDPE surface and create a strong, homogeneous joint between pipes or other fittings.
• Engineered for water, gas, and industrial piping systems, this series offers superior performance, easy installation, andlong-term durability — ensuring system integrity even under demanding operating conditions.
• Using advanced electrofusion technology, it ensures a leak-free, long-lasting joint that meets international standards for safety and performance.Electrofusion of HDPE uses electrofusion fittings which have small copper wires coiled around the inside.
• Electric current is then run through those wires using an electrofusion processor in turn melting the HDPE on the inside of the fitting and the outside of the pipe.
• Electrofusion of HDPE uses electrofusion fittings which have small copper wires coiled around the inside. Electric current is then run through those wires using an electrofusion processor in turn melting the HDPE on the inside of the fitting and the outside of the pipe.
